Ultra Slim Shallow 90mm Shower Tray Waste Trap for Stone Trays (No Dome Top)

Ultra Slim Shallow 90mm Shower Tray Waste Trap for Stone Trays (No Dome Top)

Features

The ultra-slim shallow shower tray waste trap provides a high-performance drainage solution designed specifically for modern stone and slate shower trays that utilize a square colour-matched grid without a dome top. Featuring a compact 68mm under-tray depth and a total length of 183mm, it fits effortlessly into restricted floor voids. Furthermore, it includes a robust 3-screw metal clamp ring and a 102mm metal insert designed specifically for standard 90mm waste holes. Because it incorporates a universal multifit compression outlet compatible with 1½” plastic, copper, and lead pipes, you can rely on it for a quick, secure, and leak-free installation.

• Designed for Square Grids: It is engineered specifically for shower trays that utilize integrated square colour-matched grids instead of standard domed tops. Therefore, it delivers a flush, minimalist look.
• Ultra-Slim Low-Profile Design: It measures only 68mm at its deepest point under the tray. Consequently, it fits restricted floor spaces where standard traps cannot go.
• Fully Top-Serviceable: You can access the internal components directly from above. Moreover, clearing hair and debris blockages requires zero plumbing disassembly underneath.

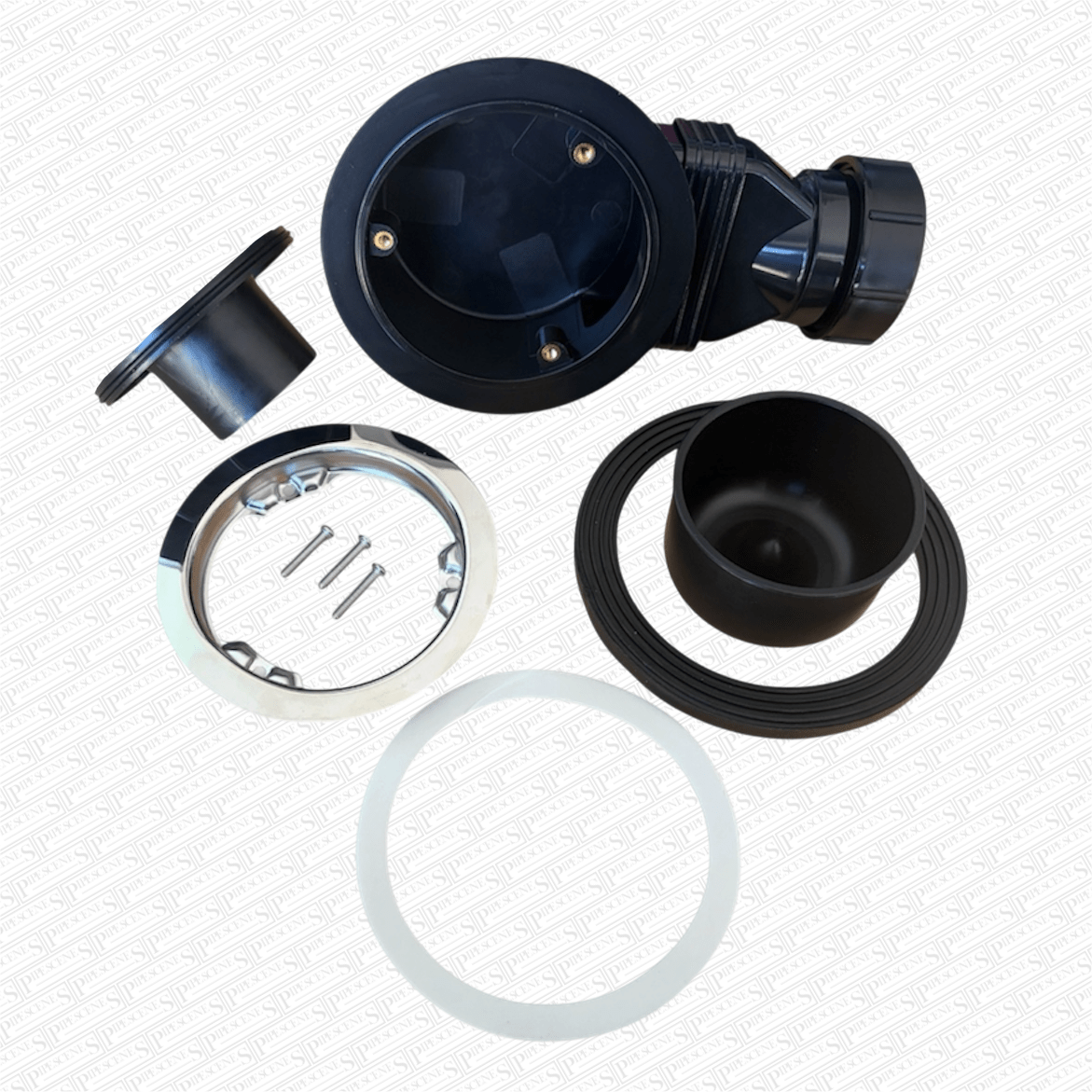

• Secure 3-Screw Clamp Ring: It utilizes a robust metal clamp ring with three screws alongside a 102mm metal insert. As a result, it creates an even, watertight grip against 90mm tray waste holes.
• Universal Multifit Outlet: The compression outlet fits 40mm to 43mm (1½”) plastic, copper, and lead waste pipes, and includes all necessary washers and seals.

Technical

• Brand: VIVA
• Part Number: WTSH90/SL (top removed)
• Component Type: Slimline Shower Tray Waste Trap (No Dome Top Variant)
• Tray Hole Compatibility: Standard 90mm diameter shower tray waste holes (Features a 102mm metal insert)
• Pipe Size Compatibility: 1½” (40mm to 43mm multifit compression outlet)
• Under-Tray Depth: 68mm at deepest point
• Overall Length: 183mm compact design
• Design Style: Dome-free configuration for trays with square colour-matched grids
• Material: High-quality polypropylene body with metal clamp ring and insert
• Maintenance: Fully serviceable from the top (Removable inner basket/trap)

Details

Installing a standard domed shower waste beneath a modern stone slate tray or a tray featuring a square integrated grid creates major aesthetic mismatches and improper sealing. Moreover, trying to find a high-flow, low-profile trap that omits the dome top while offering full top-access maintenance is often difficult.

Fortunately, this ultra-slim 90mm shower trap solves the problem completely. Because its dome-free profile accommodates square grids perfectly while maintaining a shallow 68mm under-tray depth, it combines specialized compatibility with smart engineering. Consequently, you achieve a clean, secure, and permanently accessible shower drainage setup.
